Mastering mechanical systems is an essential skill for aspiring young engineers. This comprehensive Design Technology levers and pulleys template year 5 greater depth resource provides everything educators need to guide pupils through the complexities of movement and force. Designed specifically for the UK National Curriculum, this pack moves beyond basic construction, encouraging children to explore the scientific principles of load, effort, and fulcrums.
Our original character, Kit the fox, leads students through the design process. Using this Design Technology levers and pulleys template year 5 greater depth, learners will investigate how different pulley configurations can reduce the effort required to lift a load. The resource includes detailed diagrams, technical vocabulary sheets, and a systematic planning framework that challenges students to calculate mechanical advantage in real-world scenarios.
Teachers can use this flexible resource as a core lesson plan or as a structured independent project for gifted and talented learners. Because this Design Technology levers and pulleys template year 5 greater depth is designed with higher-order thinking in mind, it pushes students to move past simple assembly. Instead, they must justify their material choices and predict how changing the position of a fulcrum will alter the performance of their prototype.
The pack includes six rigorous challenge questions to stretch understanding:
1. Explain why the position of the fulcrum significantly alters the amount of effort required to lift an object.
2. Compare and contrast the mechanical advantage of a fixed pulley versus a movable pulley system.
3. Justify your decision to use a specific material for your lever arm based on its structural integrity.
4. What might happen to the efficiency of your mechanism if the rope or cord used in your pulley system has high elasticity?
5. Design an original machine that incorporates both a lever and a pulley to solve a specific household problem.
6. Analyse the impact of friction on your pulley system and propose a modification to improve its performance.

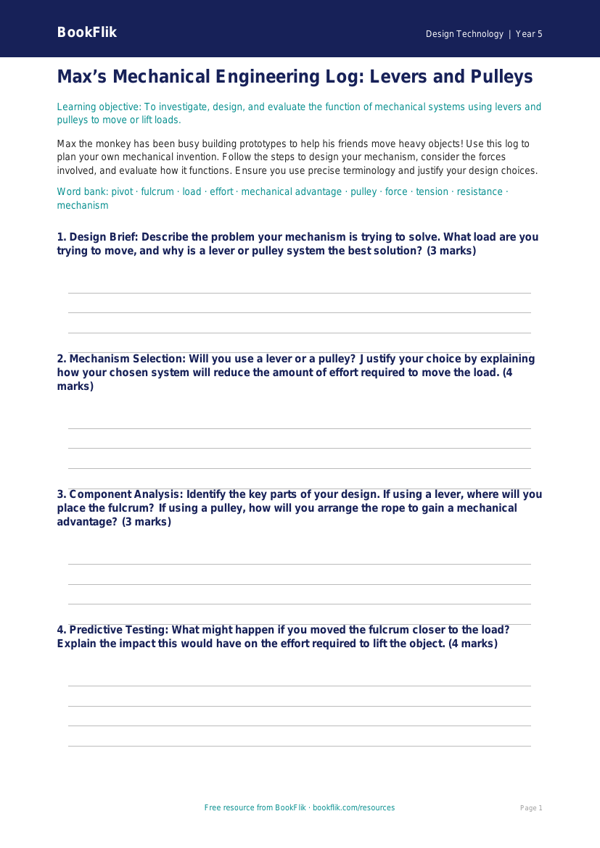

Preview the worksheet
If the preview does not load, open the PDF in a new tab.
