Boost your pupils’ engineering skills with our comprehensive Design Technology structures drawing sheet year 4 greater depth resource. Designed specifically for Year 4 classrooms, this activity moves beyond basic construction to explore the complex principles of stability, tension, and compression. By using this Design Technology structures drawing sheet year 4 greater depth, students will investigate how architects and engineers create robust frames capable of supporting significant loads.
This resource aligns with the UK National Curriculum goal of exploring how structures can be made stronger, stiffer, and more stable. Through sketching and annotating, learners will analyse the effectiveness of various bracing techniques, such as triangulation, to reinforce their designs. Our carefully crafted Design Technology structures drawing sheet year 4 greater depth is ideal for teachers looking to provide extension tasks that move students from simple functional drawing to sophisticated technical illustration.
The sheet features Max the monkey, our resident maths enthusiast, who introduces a challenge involving the financial constraints of building materials. Students must calculate the budget for their structure, ensuring their design remains under a £50.00 limit while maintaining structural integrity. This cross-curricular approach integrates essential numeracy skills with technical design.
To provide the necessary differentiation for gifted and talented learners, the resource includes six higher-order thinking questions. These prompts encourage students to justify their choice of materials, explain why specific geometric shapes improve stability, and predict how environmental factors like wind or weight might cause a structure to fail. Teachers can use this as an independent challenge for high-attaining pupils or as a collaborative group task to stimulate deep discussion about forces and geometry. Download this free resource today to inspire your young engineers to build, test, and refine their structural masterpieces with confidence and creativity. Your classroom will soon be buzzing with the logic of real-world architecture.

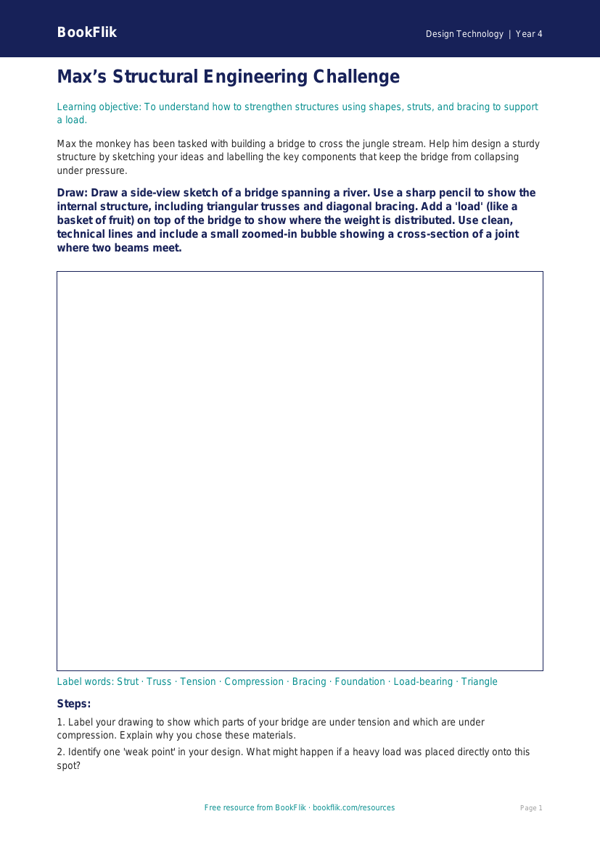

Preview the worksheet
