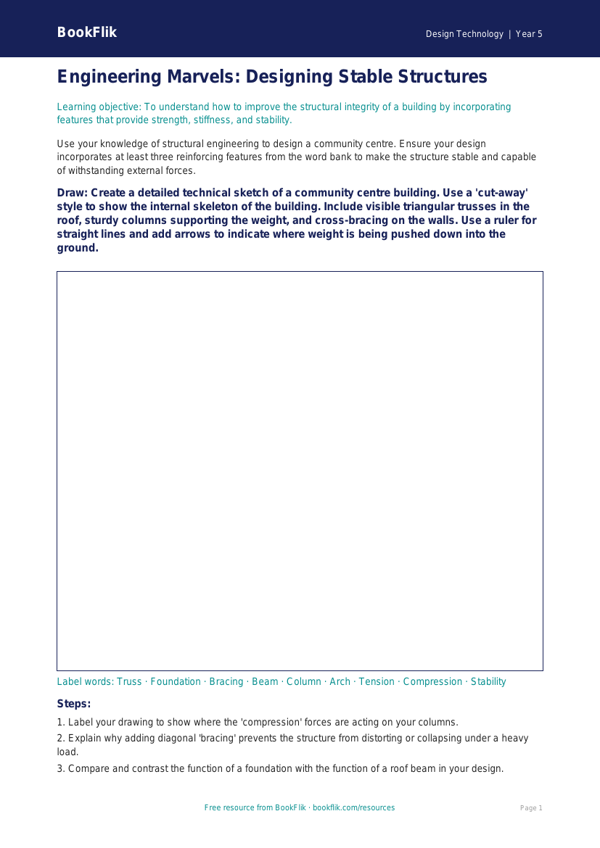

Unlock the secrets of architectural stability with our bespoke Design Technology structures drawing sheet year 5 greater depth resource. Designed specifically for Year 5 pupils, this engaging worksheet invites children to step into the shoes of an engineer as they explore the fundamental principles of structural integrity, including compression, tension, and reinforcement.
Guided by Max the monkey, who treats every building challenge as a complex mathematical puzzle, learners will move beyond simple sketching. They are tasked with designing a bridge or a tower that must withstand specific environmental pressures. This Design Technology structures drawing sheet year 5 greater depth encourages pupils to think critically about how geometric shapes, such as triangles, provide superior support compared to squares. By applying these concepts, students gain a practical understanding of how to make structures rigid and stable.
This resource is perfectly aligned with the UK National Curriculum, which requires pupils to understand how to strengthen, stiffen, and reinforce more complex structures. Teachers can use this as a core lesson activity or as a challenge task for gifted and talented learners who require more rigorous cognitive stimulation. The differentiation is built into the complexity of the design constraints; pupils are challenged to justify their material choices and predict the failure points of their designs.
Included are eight higher-order thinking questions designed to stretch young minds. Pupils will be asked to explain why specific bracing patterns are used in modern skyscrapers, compare and contrast the stability of different frame structures, and justify why their chosen design is the most efficient use of resources. This Design Technology structures drawing sheet year 5 greater depth offers a creative extension task, inviting children to draft a blueprint for a sustainable shelter using recycled materials. Download this resource today to inspire your class to build, analyse, and innovate with confidence and precision.
