Elevate your classroom displays with our comprehensive Design Technology structures poster year 5 greater depth resource. Designed specifically for ambitious learners, this educational tool moves beyond basic definitions, inviting pupils to explore the intricate engineering principles that keep our world standing tall.
This vibrant poster focuses on the core requirements of the UK National Curriculum for Design Technology, specifically exploring how structures are made more stable and strong. It covers essential concepts such as compressive and tensile forces, the importance of triangulation in framework structures, and how cross-bracing prevents deformation. By featuring Max the monkey, who treats every building project as a complex maths puzzle, this resource encourages students to approach design with precision and logical reasoning.
Teachers can use this Design Technology structures poster year 5 greater depth as a focal point for classroom discussions or as an independent research prompt. It is perfectly suited for gifted and talented pupils who are ready to investigate the mechanical advantages of arches, trusses, and beams. The content is carefully scaffolded to ensure that while the core curriculum is covered, high-achieving students are pushed to think critically about material properties and structural integrity.
Our Design Technology structures poster year 5 greater depth includes six challenging, higher-order thinking questions designed to test deep understanding:
1. Explain why triangulation is considered the most efficient method for strengthening a frame structure.
2. Compare and contrast the structural stability of a square frame versus a triangular frame under a heavy load.
3. Justify your answer: Why do architects often choose steel for skyscrapers instead of wood?
4. What might happen if a bridge lacked expansion joints in extreme weather conditions?
5. Analyse the role of tension and compression in the construction of a suspension bridge.
6. Creative Extension: Design a model shelter for a windy environment, explaining your choice of materials and shape.
Download this resource today to inspire the next generation of engineers and designers.

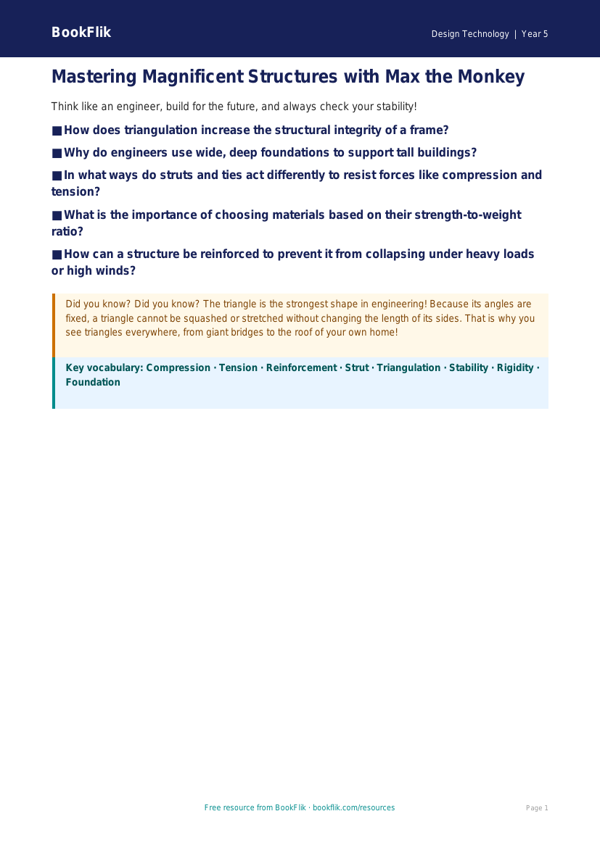

Preview the worksheet
