Boost your classroom creativity with our expertly crafted Design Technology mechanisms drawing sheet year 4 greater depth resource. Designed specifically for Year 4 pupils, this printable activity pack invites students to explore the fundamental principles of mechanical systems, including levers, linkages, and cams. As children engage with these tasks, they will move beyond basic assembly, gaining a comprehensive understanding of how motion is transferred and controlled in everyday objects.
This Design Technology mechanisms drawing sheet year 4 greater depth tool aligns perfectly with the UK National Curriculum requirements for designing, making, and evaluating functional products. By challenging pupils to conceptualise their own moving toys or automated models, the resource encourages spatial awareness and technical drawing skills. Teachers can utilise this material as a standalone lesson starter or as a structured planning stage for a larger construction project. The clear, high-quality illustrations provide a scaffold for students to sketch their ideas, while the annotation sections prompt them to explain the specific mechanical advantage of their chosen design.
What sets this resource apart is the focus on higher-order thinking. We have integrated complex challenges that require students to justify their design choices, compare different types of movement, and predict the consequences of changing pivot points. This Design Technology mechanisms drawing sheet year 4 greater depth is ideal for gifted and talented learners who are ready to push their technical abilities further.
The pack includes six rigorous questions, such as: Explain why a longer lever arm might change the effort required to lift a load; Compare and contrast a slider mechanism with a rotary cam; and What might happen if the materials used for your linkage were flexible rather than rigid? These open-ended tasks ensure that every student is stretched, fostering a deeper appreciation for engineering principles through a creative and artistic lens. Download this resource today to inspire the next generation of budding inventors and mechanical engineers.

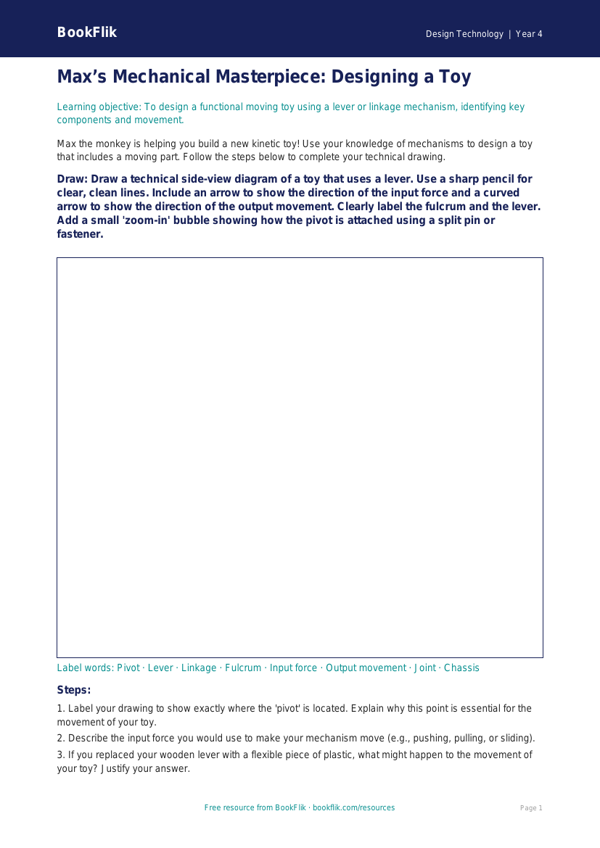

Preview the worksheet
